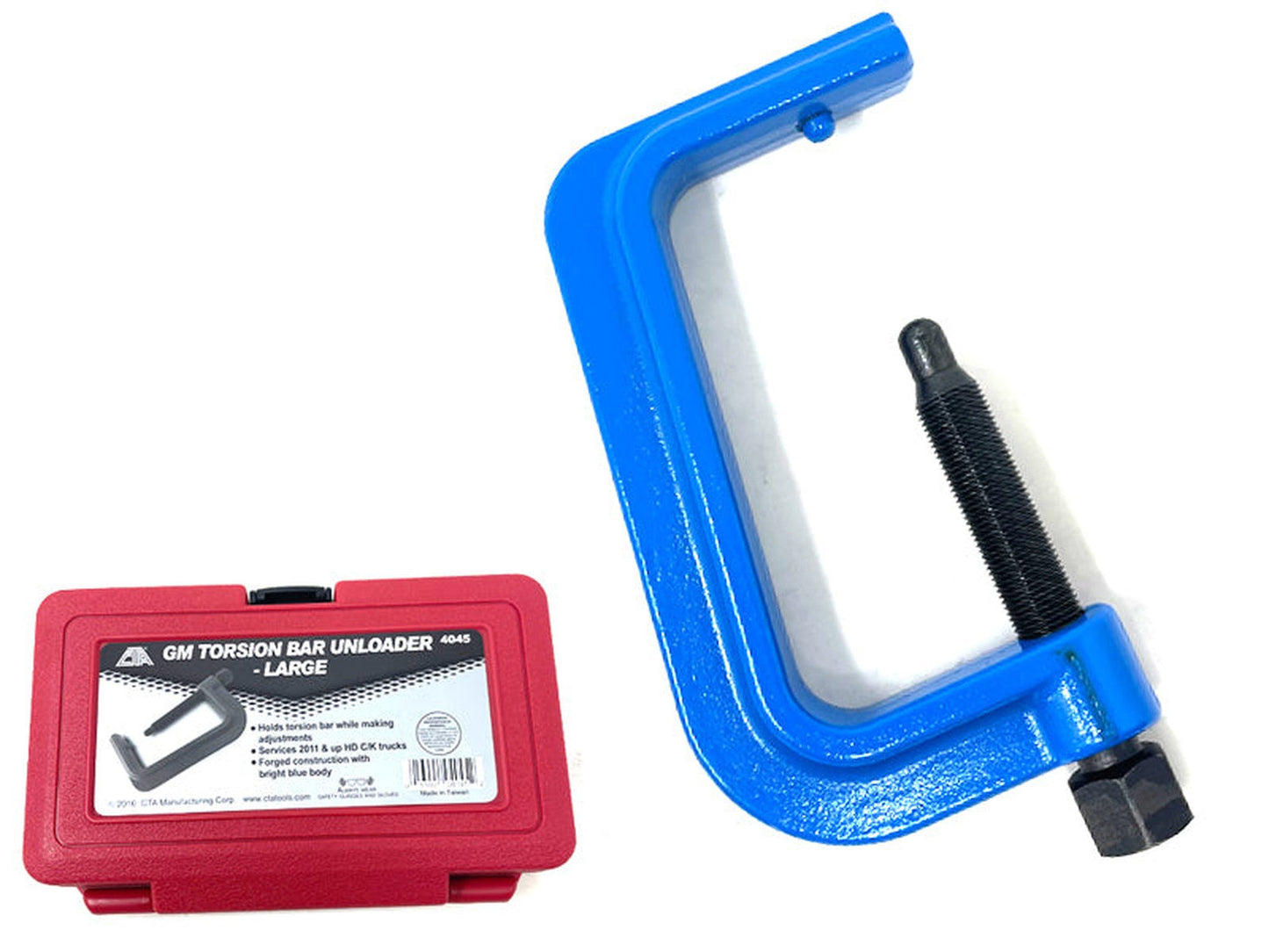

Forged Diesel Large Torsion Bar Tool, 2011-2022 GM 6.6L Duramax LML L5P

Forged Diesel Large Torsion Bar Tool.

For 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 GM 6.6L Duramax LML L5P

Forged Diesel tools are made with the highest standards to offer the best in quality and affordability.

Holds torsion bar while making adjustments
Services 2011 & up HD & C/K trucks (GM Trucks)

REMOVAL:
1. Attach Torsion Bar Unloader to frame rail of vehicle
2. Tighten tool against the torsion bar adjusting arm
3. Loosen or fully remove the adjusting bolt connected to the adjusting arm
4. Count the number of turns in order to identify the original position of adjusting bolt
5. When complete, remove tool and perform required service

INSTALLATION:
1. Attach Torsion Bar Unloader to frame rail of vehicle
2. Tighten tool against the torsion bar adjusting arm
3. Tighten tool, drawing torsion bar adjusting arm into the frame rail
4. Tighten torsion bar adjusting bolt using the number of turns recorded in removal (Removal Step 2).
5. Remove tool
6. Check vehicle service manual for correct trim height and alignment specs

Replaces# 4045
